| Piston Type: | refrigeration system | Configuration: | Stationary |
|---|---|---|---|
| Power Source: | AC Power | Lubrication Style: | Lubricated |
| Gas: | R410A | Drive Mode: | Electric |
| Weight: | 135KGS | Voltage: | 380V |
| Color: | Blue | ||
| Điểm nổi bật: | screw type air compressor,copeland refrigeration compressors |
||

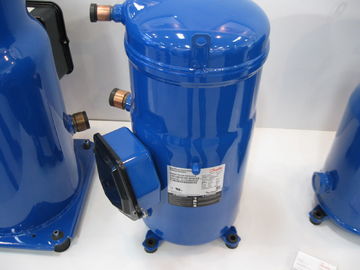

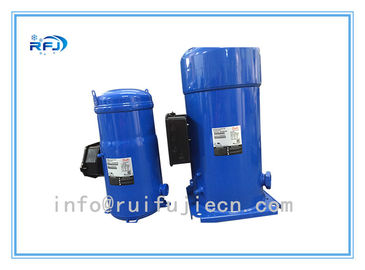

Performer 8HP Refrigeration Scroll Compressor AC Power Blue Color
1. SM/SY series for R22
2. SZ series for R407c
3. Horse power range from 7 HP to 25 hp
SM/SZ series.
*7 to 25 HP.
*R22/R407C refrigerant
The SH184 stainless steel modeling spatula is a thicker heavy-duty scraper and spatula with two uniquely shaped ends. One tool end has been designed as a traditional rounded spatula; the other tool end has been squared-off for cutting and scraping applications.
This rust-resistant tool is made for working in clay and plaster. The SH184 is especially helpful when sculpting larger models and laying up large amounts of wet plaster.
Approximate length - 10".
COMPRESSOR MODELS FOR R22:
SM084
SM090
SM100
SM110
SM115
SM120
SM125
SM148
SM160
SM161
SM175
SM185
SY240
SY300
COMPRESSOR MODELS FOR R407C:
SZ084
SZ090
SZ100
SZ110
SZ115
SZ120
SZ125
SZ148
SZ160
SZ161
SZ175
SZ185
SZ240
SZ300
SM series:
SM084-4VM(7HP)
SM090-4VM(7.5HP)
SM100-4VM(8HP)
SM110-4VM(9HP)
SM115-4VM(9.5HP)
SM120-4VM(10HP)
SM125-4VM(10HP)
SM148-4VM(12HP)
SM160-4VM(13HP)
SM185-4VM(15HP)
SZ seires:
SZ084-4VM(7HP)
SZ090-4VM(8HP)
SZ100-4VM(8HP)
SZ110-4VM(9HP)
SZ120-4VM(10HP)
SZ148-4VM(12HP)
SZ161-4VM(13HP)
SZ/Y185-4VM(15HP)
We can supply more compressor models as below:
| 50Hz Data | |||||||||
| Model | Nominal Cap. 60HZ |
Nominal cooling capacity | Power input | Cop | E.E.R. | Swept Volume | Displacement | Oil charge | |
| TR | W | Btu/h | KW | W/W | Btu/h/W | cm/rew | m/h | dm | |
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 114.5 | 19.92 | 3.3 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 120.5 | 20.97 | 3.3 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 127.2 | 22.13 | 3.3 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 144.2 | 25.09 | 3.3 |
| SM112 | 9.5 | 27600 | 94400 | 7.92 | 3.49 | 11.9 | 151.5 | 26.36 | 3.3 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 155 | 26.97 | 3.8 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 166.6 | 28.99 | 3.3 |
| SM124 | 10 | 31200 | 106300 | 8.75 | 3.56 | 12.2 | 169.5 | 29.5 | 3.3 |
| SM125 | 10 | 30100 | 102800 | 8.93 | 3.37 | 11.5 | 166.6 | 28.99 | 3.8 |
| SM147 | 12 | 36000 | 123000 | 10.08 | 3.58 | 12.2 | 193.5 | 33.7 | 3.3 |
| SM148 | 12 | 36100 | 123100 | 10.8 | 3.34 | 11.4 | 199 | 34.6 | 3.6 |
| SM160 | 13 | 39100 | 133500 | 11.6 | 3.37 | 11.5 | 216.6 | 37.69 | 4 |
| SM161 | 13 | 39000 | 133200 | 11.59 | 3.37 | 11.5 | 216.6 | 37.69 | 3.6 |
| SM175 | 14 | 42000 | 143400 | 12.46 | 3.37 | 11.5 | 233 | 40.54 | 6.2 |
