Piston loại: | Cuộn | Nguồn điện: | Nguồn điện xoay chiều |
---|---|---|---|
Chế độ lái xe: | Điện | Sức ngựa: | 6 HP |
Cấu hình: | Văn phòng phẩm | Nhiệt độ: | Nhiệt độ trung bình / cao |
Phong cách bôi trơn: | Không dầu | Tắt tiếng: | Có |
Điểm nổi bật: | copeland a c compressor,commercial refrigeration compressor |

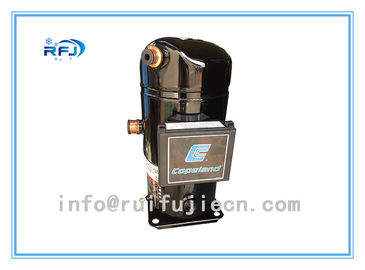

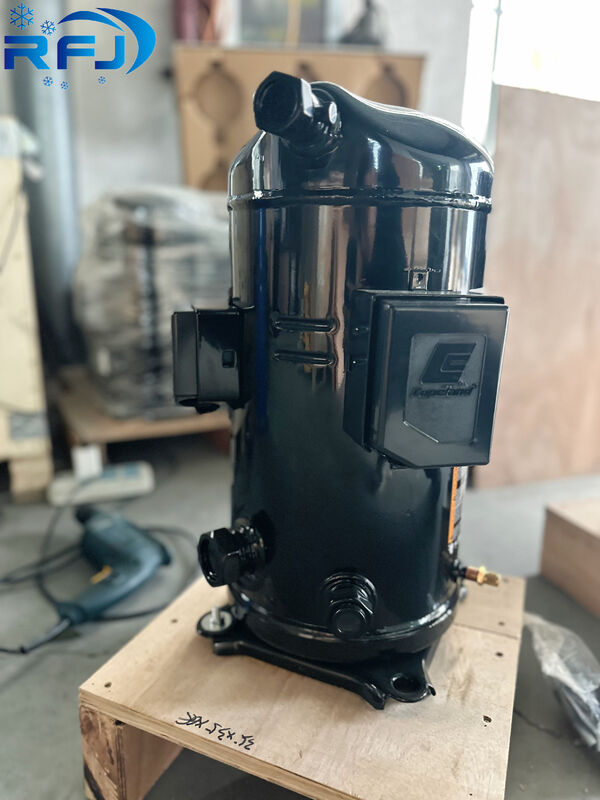

Refrigeration 17700 BTU Copeland Scroll Compressor ZR72K3 6HP for Air Conditioner
Specifications:
Description:
1.Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....
2.The are Copeland scroll compressors, can be used for air conditioning and refrigeration.
3.We have models made in China,Thailand and Belguim.
4. 12 units packing with one pallet.
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
Copeland Scroll Compressor 2–7 HP
Copeland Scroll Compressor 7–15 HP
Copeland Scroll Compressor 20–40 HP
We can supply more ZR models as follow:
copeland compressors - air conDitioning (cont' D) | |||||
hBp compressor – three phase | |||||
Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
FLa | (Kg) | ||||
ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
Phase | Model | Horse Power/HP | Displacement (m3/h) | ARI 7.2/54.4°C | Weight/Kg | Height /mm | |
Cooling (W) | Input (W) | ||||||
1 Phase | ZR16K3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
ZR20K3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
ZR22K3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 | |
ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 | |
ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 | |
ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 | |
ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 | |
ZR32K3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 | |
ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 | |
ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 | |
ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 | |
ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
3 Phase | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 | |
ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 | |
ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 | |
ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 | |
ZR32K3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 | |
ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 | |
ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 | |
ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
2ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 | |
ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 | |
ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 | |
ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 | |
ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 | |
ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 | |
ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 | |
ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 | |
ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 | |
ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 | |
ZR84KC-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 | |
ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
ZR125KC-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 | |
ZR90K3-TWD | 7.5 | 20.9 | 21540 | 6620 | 91 | 542 | |
ZR11M3-TWD | 9 | 24.9 | 25840 | 7805 | 91 | 542 | |
ZR12M3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
ZR16M3-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 | |
ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 |
